Extruders
Solutions Built for Your Product
Tailored to Your Application
Our extruders are custom-made to your exact product specifications. From profile to industrial tubing, wire and cable extrusion to healthcare needs and catheter tubing, we can build solutions tailored to your application.
Applications

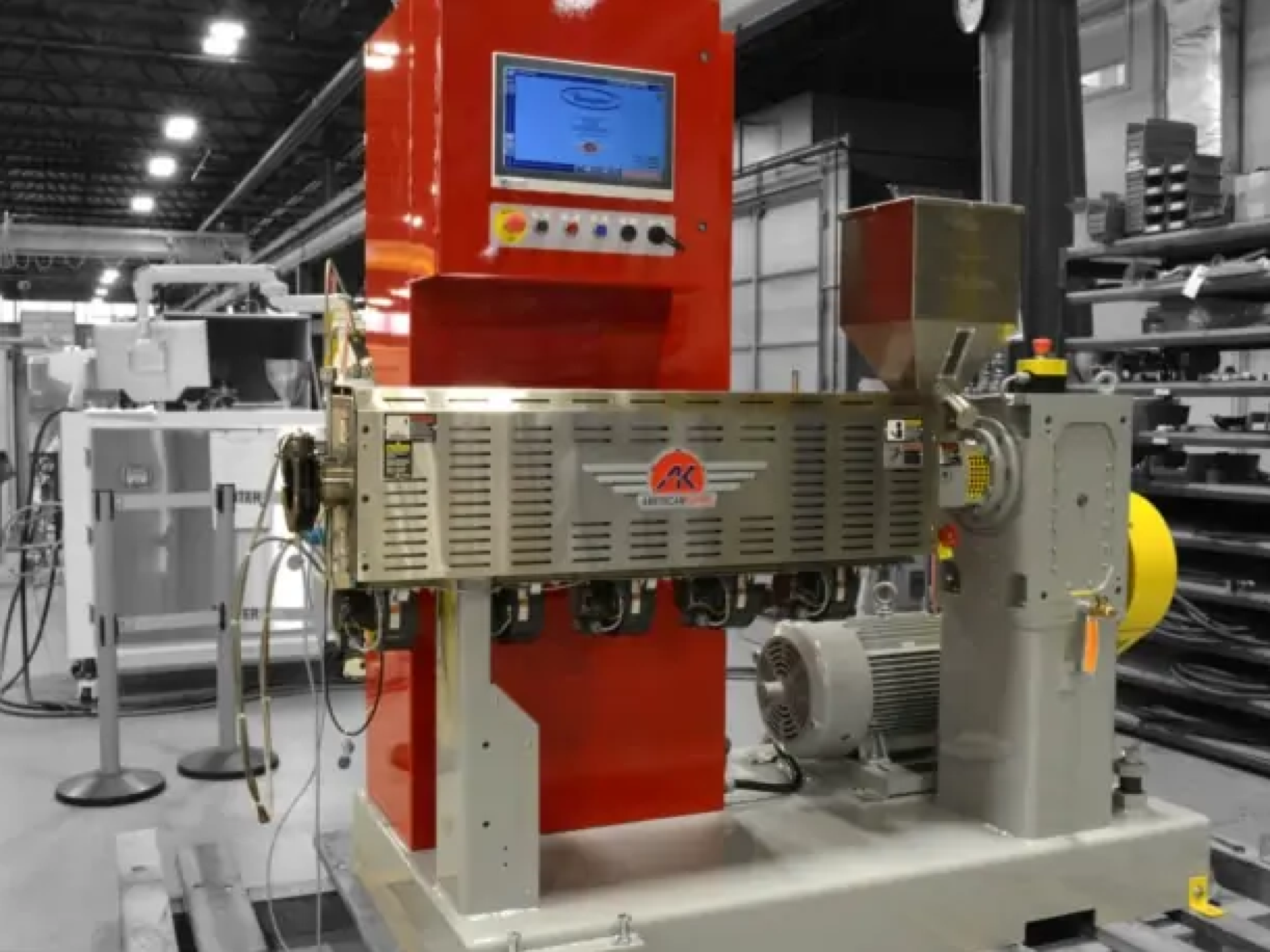

ULTRA | Extruders
Delivering longevity, accuracy, and ease of control with top-of-the-line parts, an integrated control system, and hundreds of configuration possibilities to accommodate your production needs.
- Heated single bolt clamp
- Cast aluminum cooling shrouds and heaters
- Full surround water-cooled feed throat
- Rear-mounted taper roller thrust bearing
- One-piece gearbox casting
- Stainless steel hopper
- Standard heated single bolt clamp
- Cast aluminum cooling shrouds
- Deep fin, bolt-on cast aluminum heaters
- Full surround water-cooled feed throat
- Rear-mounted taper roller thrust bearing
- Heavy wall, one-piece gearbox casting
- High temperature and corrosion resistant features available
- Navigator XC100, XC200, or XC300 PC-based control
- Heater/coolers capable of 650 or 900 degrees Fahrenheit
- Spare parts tailored to customer needs
- One or two die/head supports
- 3-position swing hopper on/off/dump
- Air, Backdraft or Water cooled options
- Custom base designs and heights to suit customer’s application
- Replaceable feed section liners
- Grooved feed throat extruders

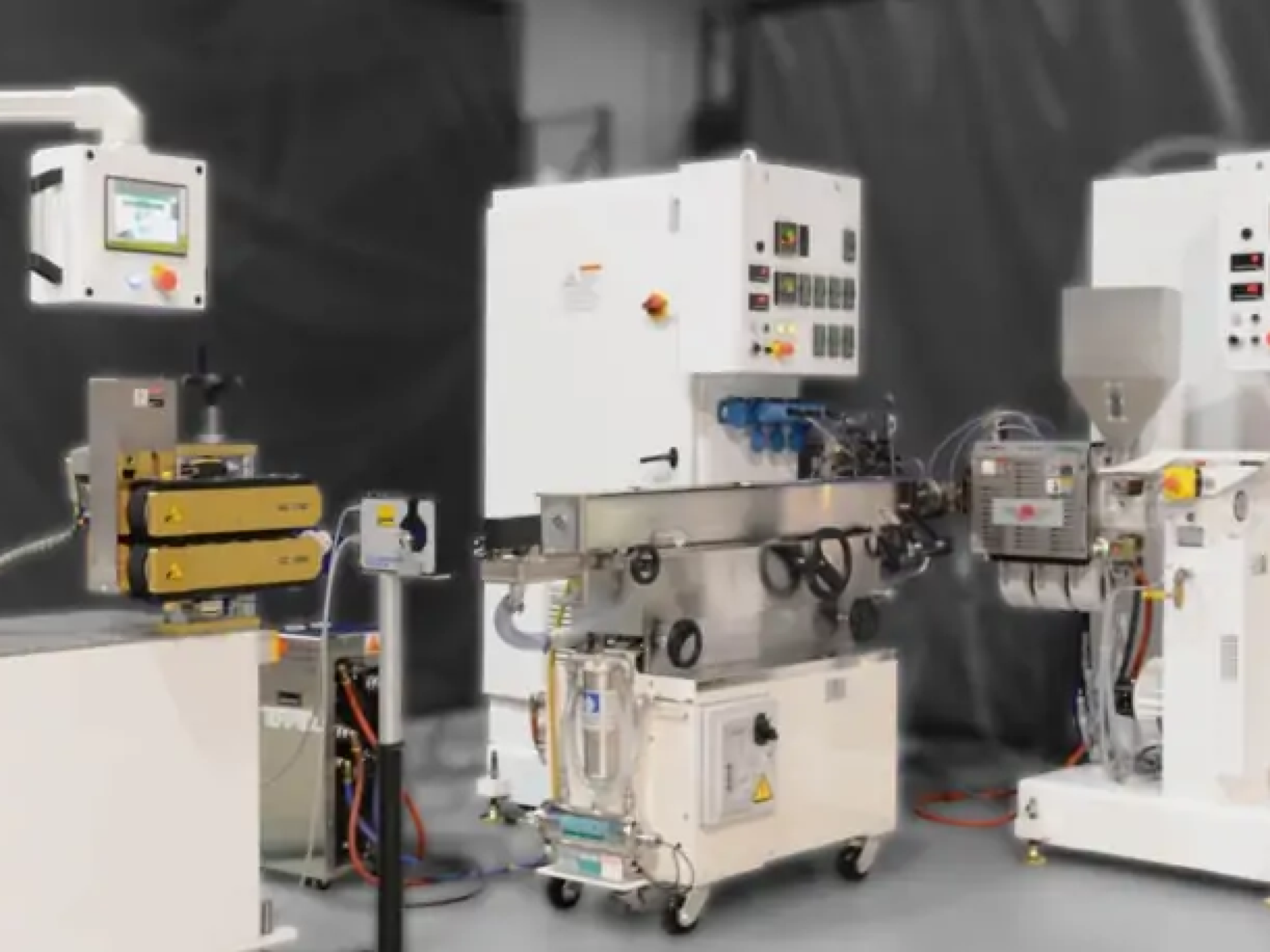

ULTRA MD | Medical Extruders
Providing control and high-quality output with extruders designed exclusively for medical applications and safe to use in a cleanroom environment.
- Closed-loop AC vector
- Pressure feedback control
- Rapid screw speed change options
- Melt pump system
- Urethane-based medical paint
- Replaceable feed section liner up to 1.75 inches
- Touchscreen controls
- Melt pressure control
- Detailed system with state-of-the-art testing
- Tri-layer medical system
- Compact Modular MD Series options
- Pressure feedback control
- Three levels of our Navigator system
- Additional barrel modules available
- Optional melt pumps

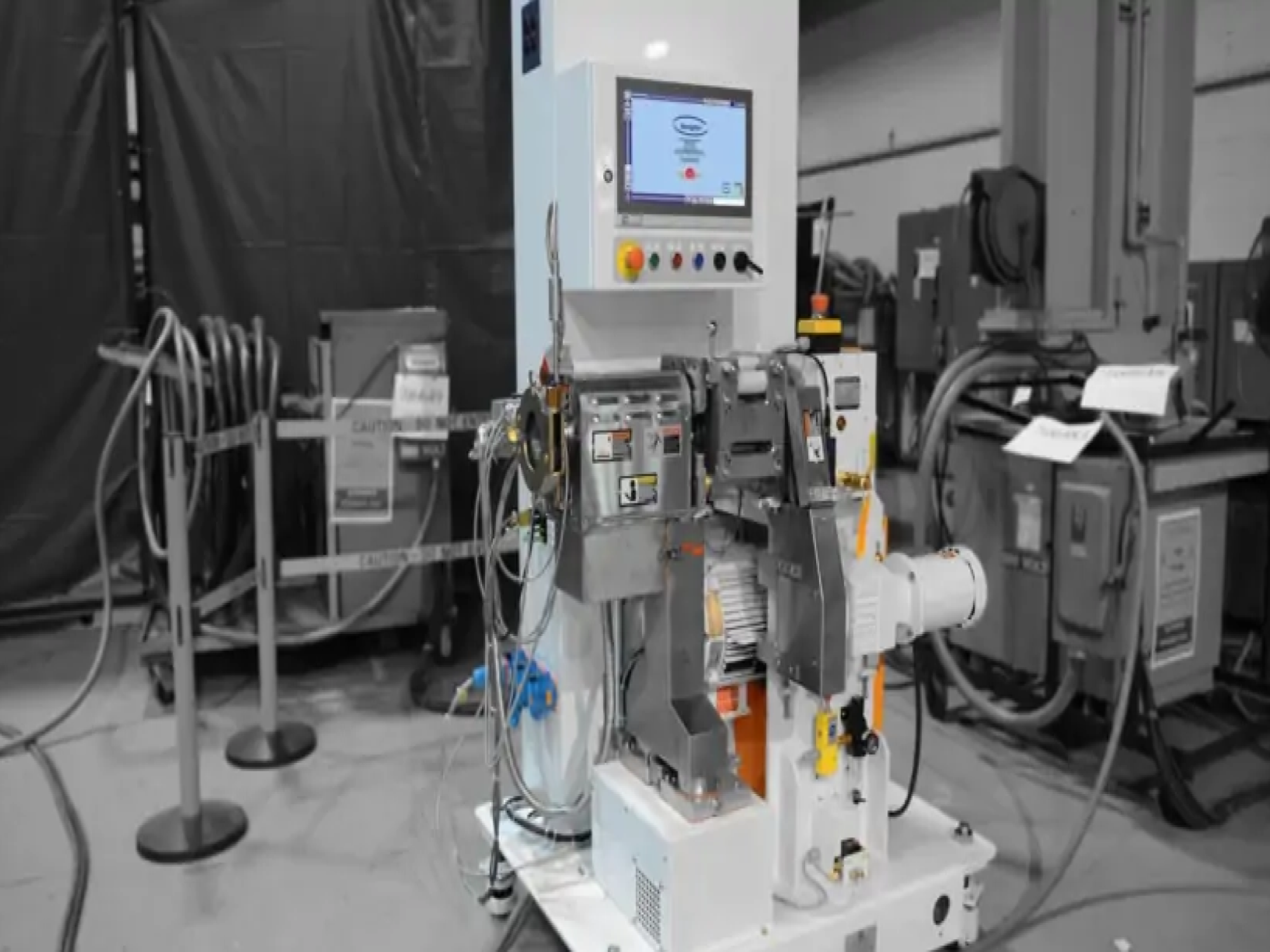

ULTRA R/S | Rubber & Silicone Extruders
Offering safety, easy cleaning, intuitive controls, and modularity for improved performance, serviceability, and longevity.
- Silicone extruders from .75-4.5 inches in diameter
- Bolt-on cast aluminum double-pass barrel coolers
- Open roller feed
- Rubber extruders from 1-4.5 inches in diameter
- Temperature control
- Even-flow technology for water balance
- Inline helical gearbox
- Power Hinge roller feed assembly
- Removable scraper blade
- Internally cooled, hardened, and polished screws
- Special cooling system design
- Various fixed horizontal extruder size options
- Spare feed rolls and bearings available
- Optional wheel mount
- Adjustable height choices
AKcent® | Co-extruders
Offering modularity and customization for specific tubing, profiles, wire, and cable production with an easy tilt feature that allows for quick adjustments.
- Full tilt from horizontal to vertical
- Double reduction gear reducer
- High-quality, rear-mounted thrust bearing
- Feed section casting
- High-capacity barrel cooling
- AC vector drive
- Robust extruder gearboxes
- Narrow floor footprint
- Lower center of gravity
- Configurations from 0.75 to 1.75 inches in diameter
- Fixed horizontal, 0-45 degree tilt or full tilt
- Tee, Y or custom base
- Heavy duty single bolt heated clamp or bolt flange
- Field replaceable feed liners
- Manual or motorized height adjustment
- High temperature and corrosion resistant

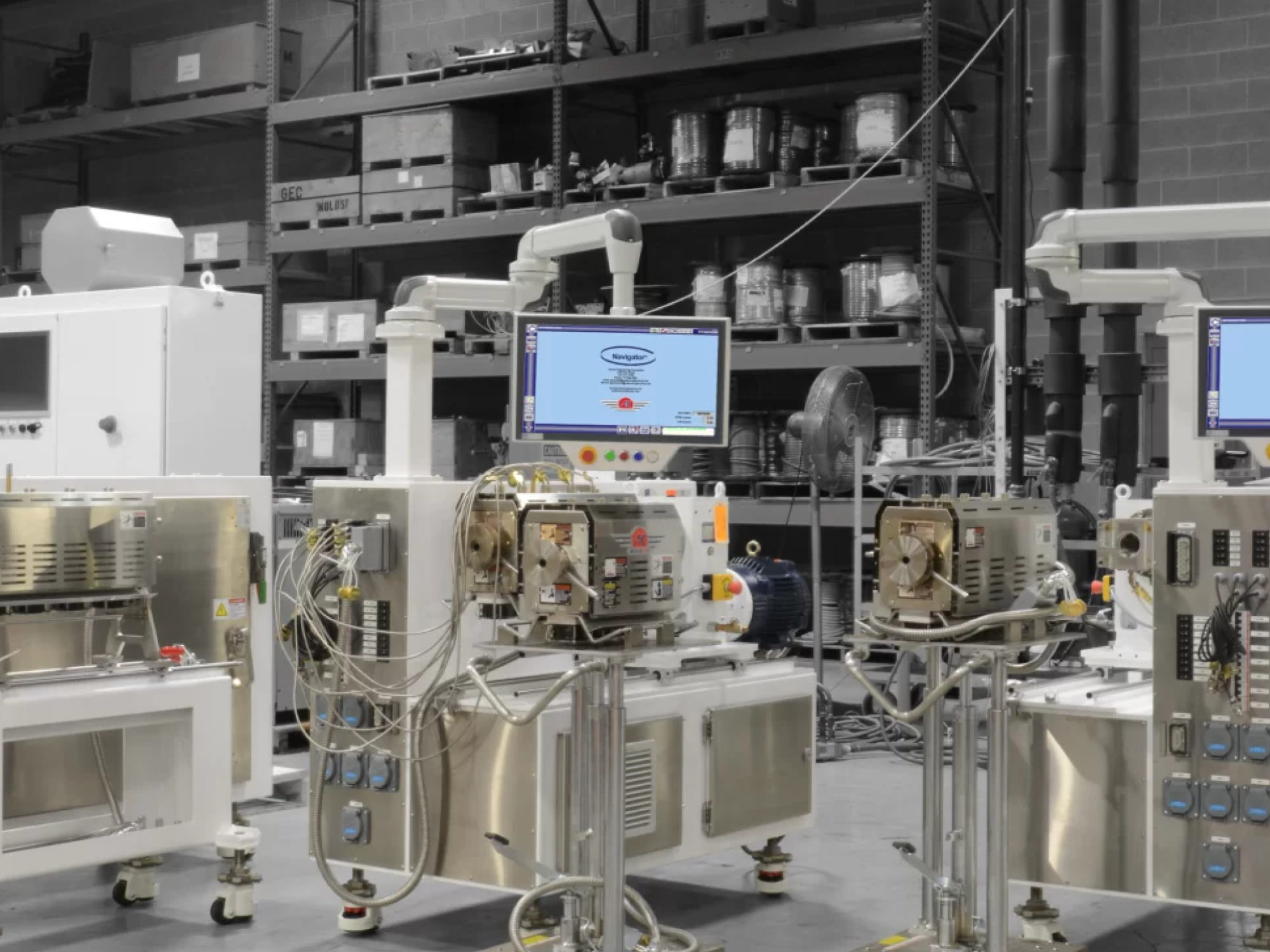

Modular Extruders | Specialty Medical Extruders
Delivering consistent, high-quality end products through customizable, flexible medical modular extruders tailored to manufacturing requirements.
- Navigator controls
- Barrel modules range in size from .5 to 1.75 inches
- Multiple material (PEEK, FEP, high-temp, and corrosive)
- Bump tubing capabilities
- Completely modular and customizable
- Small .5, .625, .75 and 1 inch
- Medium .75, 1 and 1.25 inch
- Large 1, 1.25, 1.50 and 1.75 inch
- Fully equipped lab
- Co-extrusion systems
- Multiple barrel extruders
- Spare parts included
- High temperature & corrosion resistant modules available
- R&D Lab Systems
- Co-Extrusion Systems
- Ultra MD HT CR Extruders
- Silicone Extruders and Systems
- Modular Tri-Layer Medical Systems
