Sheet Extrusion
Polymer sheet extruders featuring custom, highly engineered tooling configurations.
Our Focus
Solutions Built for Your Product
Custom Configurations for Your Needs
Our polymer sheet extrusion solutions include coextrusion and multi-layer methods and feature custom, highly engineered tooling configurations. We build our sheet extrusion solutions around your product to ensure quality and performance.
Sheet Extrusion
Applications
Construction
Graphics
Medical & Pharmaceutical
Packaging
Sheet Extrusion

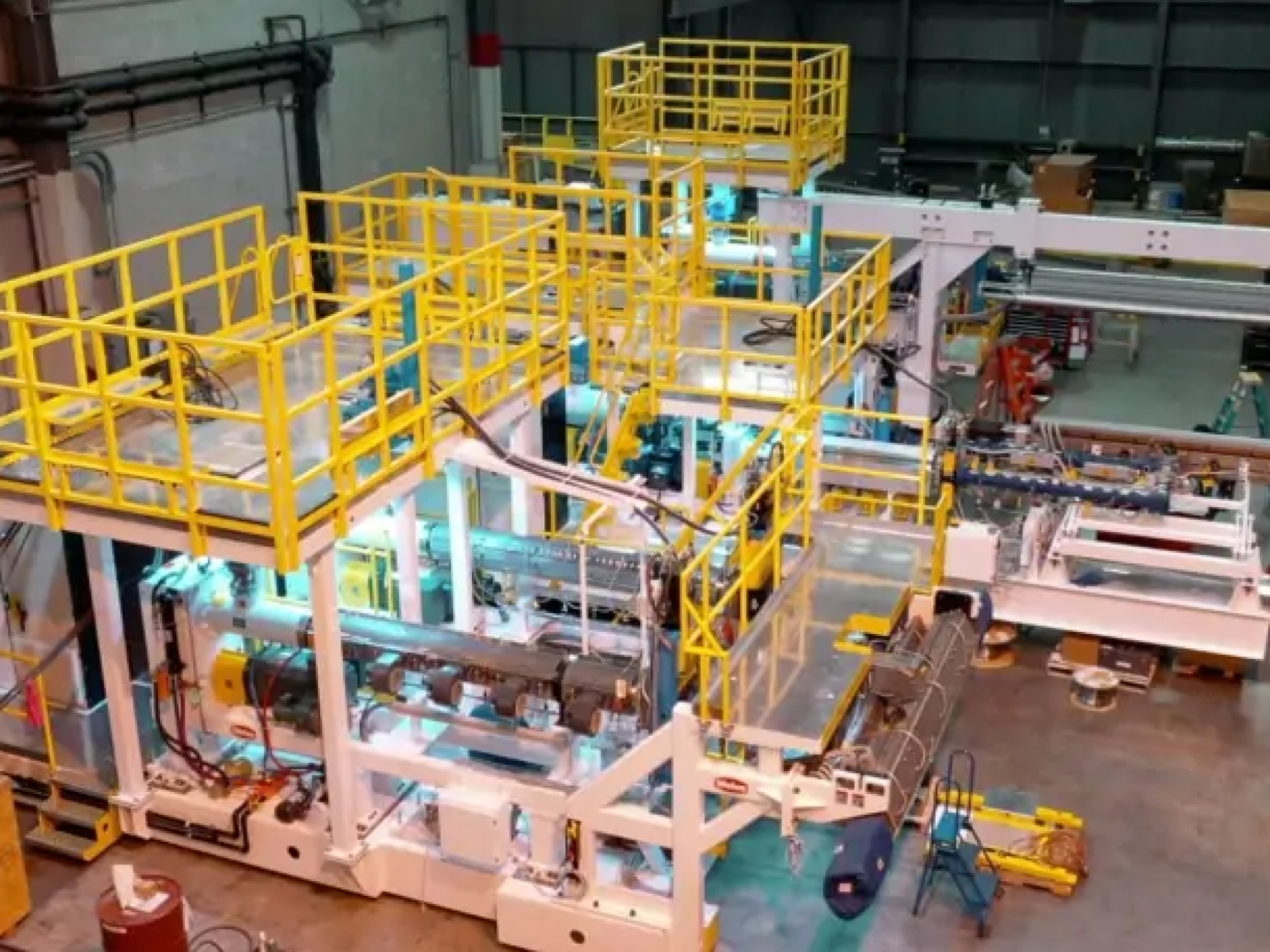

Evolution® | Sheet Extrusion System
Offering highly efficient sheeting, winding and in-line thermoforming systems with flexible choices for downstream and finishing options to tailor processes to your product.
- Sheet widths from 36 to 90 inches
- Sheet gauge from .008 to .125 inches
- Throughputs to 10,000 pounds per hour
- XSL Navigator® control system
- Flexible and customized roll stand
- Hydraulic, pneumatic, and boosted pneumatic roll system
- Control over gap thickness
- Remote support and troubleshooting
- Engineered tooling configuration options
- Intuitive navigation
- Monolayer or co-extrusion up to 9 extruders
- Multilayer or Polyside
- Rolls with nips controlled hydraulically, pneumatically, or boosted pneumatic
- Roll take-off choices: upstack, downstack, J-stack, inclined, or horizontal
- Roll skewing
- Electrically controlled nip height adjustment
- Downstream and finishing customizations
Sheet Extrusion

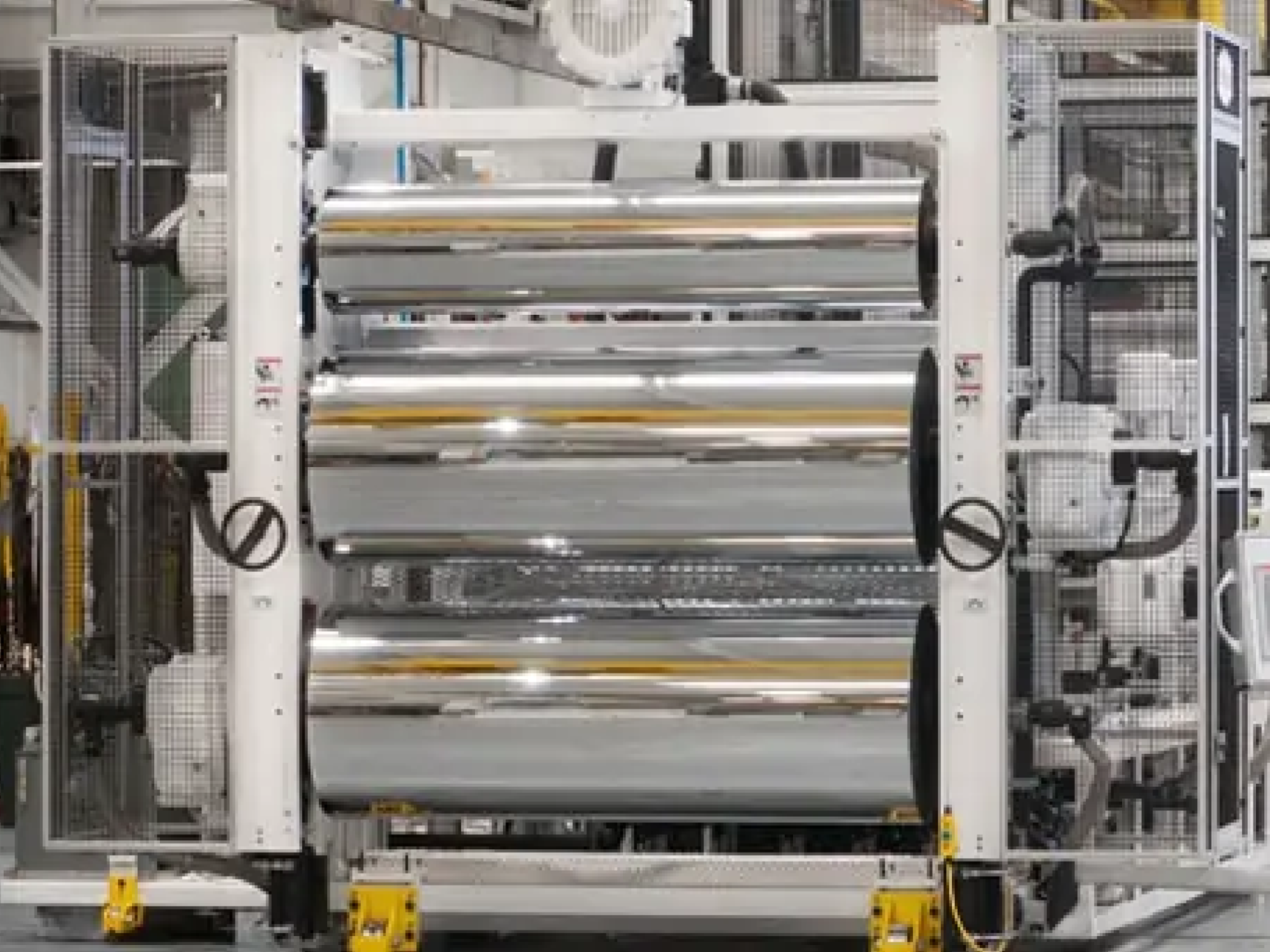

Hercules Sheet Extrusion® | Sheet Extrusion System
Delivering efficient sheet extrusion for thick gauge applications with flexible design and modular construction that are customizable to your product and application.
- 15-inch XSL Navigator® control system
- Sheet widths from 48 to 130 inches
- Sheet gauge from .03 to .05 inches
- Monolayer or co-extrusion
- Throughputs to 10,000 pounds per hour
- Flexible and customized roll stand
- Hydraulic, pneumatic, and boosted pneumatic roll systems
- Automatic height adjustment
- Precision controlled linear positioning
- Electronically controlled gap adjustment
- Linked to hydraulic roll gap system
- Monolayer or co-extrusion
- Downstream and finishing options
- Upstack configuration
- Extruder range sizes 1.5 to 10 inches
- Mounted components choices to suit needs
